Thermal monocular - HIKMICRO FALCON FH25

Hikmicro Falcon FH25 thermal monocular

The HIKMICRO Falcon FH25 thermal monocular (HM-TS43-25XG/W-FH25) is equipped with a high quality 384×288 px 12µm resolution core (12 micron technology) with 20mK sensitivity, 25mm lens and 8x digital zoom. Thanks to its highly sensitive core, the Hikmicro Falcon will give you a completely clear image even in complete darkness

The Hikmicro Falcon supports hot tracking (tracking the hottest spot in the image), a ratio rangefinder and Wi-Fi. The FH25 allows detection up to 1200m and the battery life is a respectable 7 hours of continuous operation

The FH25 is equipped with the latest image processing techniques

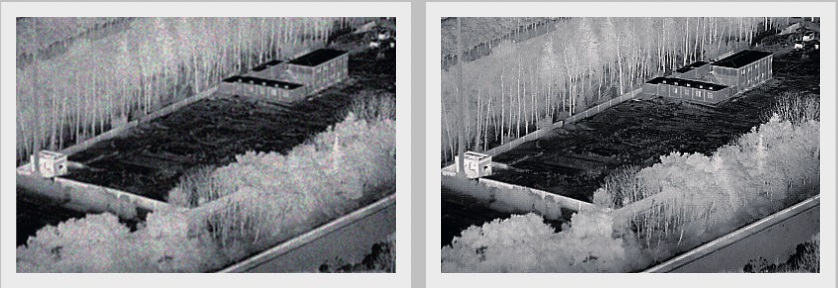

Auto Gain Control (AGC): AGC technology automatically adjusts the dynamic range of the image. Hikvision thermal imaging cameras use a unique technology called Adaptive AGC, which is much more advanced than the conventional so-called linear AGC used in other manufacturers' thermal imaging cameras.

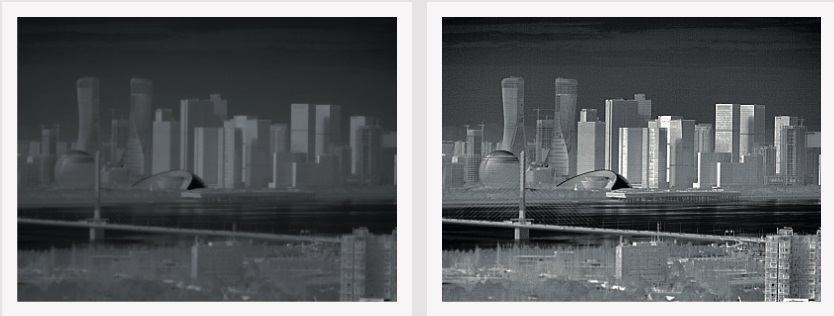

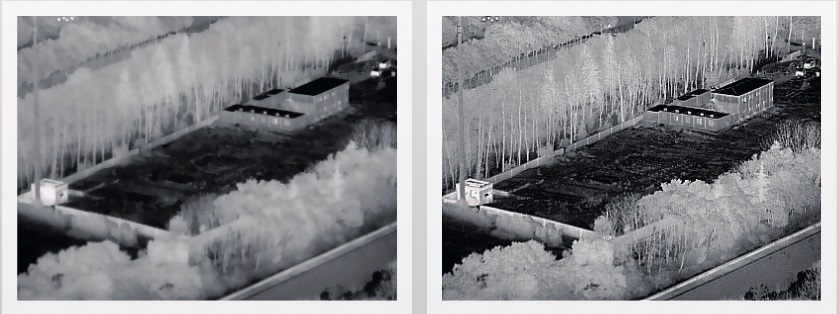

Three-Dimensional Digital Noise Reduction (3D DNR) 3D DNR technology very effectively removes grainy or blurry parts of the observed scene. The resulting image is much clearer than instruments using traditional two-dimensional noise reduction (2D DNR)

HIKMICRO is one of the few manufacturers to have in-house production of a 384x288 resolution, VOx-type core, making the latest thermal imaging cameras great value for money. The lower the NETD value (20mk), the better the sensor can record small temperature differences of objects with perfect images!

The built-in thermal detector with a high sensitivity of 20mk provides a clear image even in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest undergrowth, etc

Specification

• Detector resolution 384×288 px, 12 µm, VOx
• NETD (thermal sensitivity) < 20 mk (at 25 °C, F#= 1.0)
• 25 mm lens
• Magnification 2.17 - 17.36x
• Digital magnification 1x, 2x, 4x, 8x
• Field of view 10.5°x7.9°
• Refresh rate 50 Hz
• Detection 1200 m
• Display 0.4 inch, OLED, 1024x768px
• Palette Heat as Black, Red, White, or Fusion
• Hottest Point Detection YES
• Wi-Fi capability YES
• 64 GB built-in storage
• Photo capture capability YES
• Video recording capability YES
• Rangefinder YES, proportional
• Battery type Lithium battery
• Power saving mode YES
• Battery operating time Up to 7 hours of continuous operation (without Wi-Fi function)
• USB-C power supply
• Operating temperature -30°C to 55°C (-22°F to 131°F)
• IP67 protection level
• Drop resistance up to 1.5 m

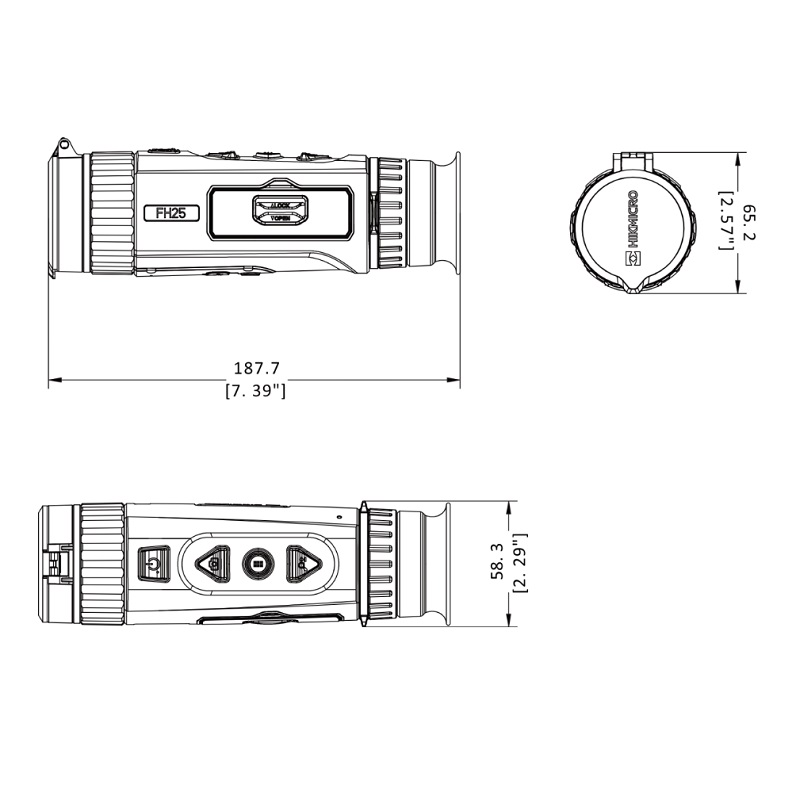

• Dimensions (L x W x D) 187×58×65 mm
• Weight 500 g
• Warranty 3 years

*Detection is dependent on, among other things, meteorological conditions (snow, rain, fog, ambient temperature, etc.) The actual detection performance may be both higher and lower

Package contents

• Thermal imager HIKMICRO FALCON FH25
• Instructions
• Cloth for cleaning the lens from dust
• USB-C cable
• Protective pouch for the thermal camera
• Hand strap
• Carrying case
• Battery charger for 18650 battery
• 2x 18650 battery
• Neck strap
